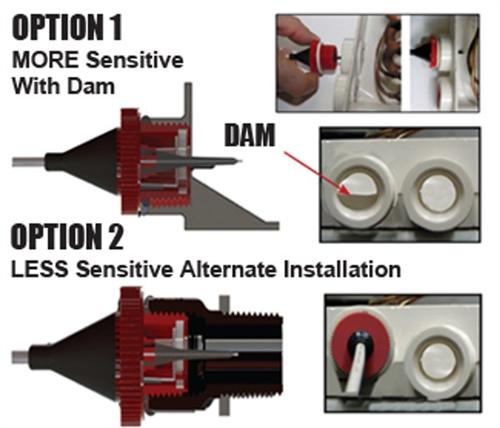

The AquaGuard AG-3150E’s primary pan sensor is mounted directly in the auxiliary drain of the primary drain pan. The bonus secondary sensor can be installed either vertically or horizontally and features a water detection LED light.

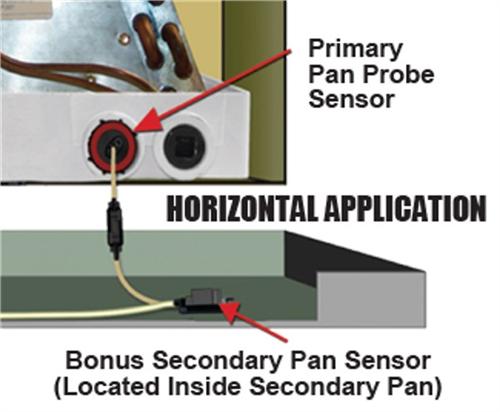

Vertical application, the bonus secondary sensor can be mounted on the side of the unit. For a Horizontal application, the bonus secondary sensor can be installed directly in the metal or plastic secondary drain pan, which allows both sensors to continuously monitor any condensate overflow in both the primary and secondary drain pans. If any condensate overflow is detected in either drain pan, the sensor(s) will automatically shut off the system and activate an alarm in as little as 1/16 inch of water.

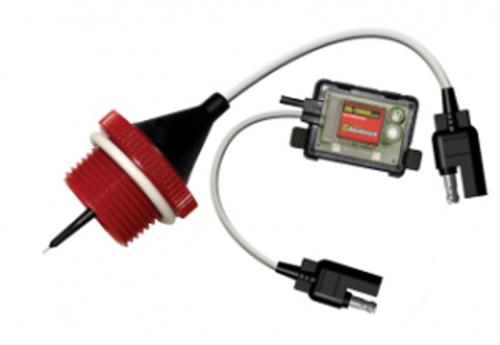

AquaGuard AG-3150E / AG3150E / 96124 - Probe Sensor with Secondary Water Detection LED Light
Features / Product Specifications
-
FREE SHIPPING!
-
Smart Sensor Technology with Time Delay
-
6 Feet of Both Probe & Sensor Wire
-
Redesigned Probe Sensor for Increased Reliability
-
5 Amp / 24VAC Solid State Sensor with Water Detection LED Light
-
Switch Can Be Normally Open or Normally Closed
-
Compact Waterproof Design
Replaces / Supersedes: 96124 , 021449961240 and others.
Bulk Discounts available for Rectorseal orders of $2000 or more...Contact Us for a Quote
Click on any of the links below to download associated documentation.
»
